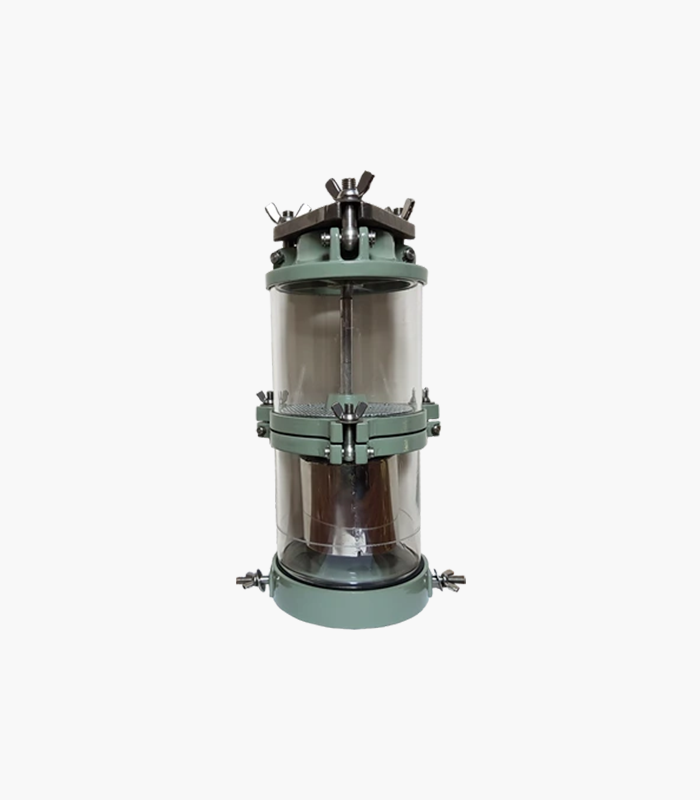

Moisture Holder Type L Form E (DIN 42562 / EN 50216-5)

Moisture holder type L Form E (DIN 42562 / EN 50216-5) is used to dehumidify the suction air of Oil Type Power transformers.

For more detailed information on the Moisture holder type L Form E, please download our brochure below.

Product Code : MH.641E / MH.651E / MH.661E / MH.671E / MH.681E

Download PDF
(1 customer review)
Compare
SKU: MH.641E / MH.651E / MH.661E / MH.671E / MH.681e Category: Tag:
14 People watching this product now!
Additional information
Form E 1.2 Kg.

MH.641E 1,2 4500
Form E 2.4 Kg.

MH.651E 2,4 9000
Form E 3.6 Kg.

MH.661E 3,6 13500
Form E 4.8 Kg.

MH.671E 4,8 18000
Form E 6.0 Kg.

MH.681E 6,0 22500
Reviews (1)

1 review for Moisture Holder Type L Form E (DIN 42562 / EN 50216-5)

  1. Hann –

    Hann Accessories

    0
    0
Add a review

Your email address will not be published. Required fields are marked *

Description

Moisture holder Type L Form E (DIN 42562 / EN 50216-5)

Moisture holder type L for (DIN 42562 / EN 50216-5) is used to dehumidify the intake air of Oil Type Power transformers. When the operating temperature of the transformer drops, the air is sucked through the oil chamber, the dirt particles remain in the oil chamber and are dried by the silica gel material in the Moisture holder (B1-B2).
The silicagel material inside the oil treasure and B1-B2 parts prevents the constant contact of the moist air with the insulating oil inside the Transformer and cleans the incoming air. When the oil in the transformer is heated, the air formed comes out of the expansion tank and flows in the opposite direction inside the moisture holder. Type L of moisture holder to be used is selected according to the oil volume of the transformer.

Din 42562 Moisture holder type L consists of upper part (B1) and oil chamber (OV). You can examine the table below for the product selection recommended under average operating conditions.

Type / Form   Code No Silicagel Capacity  (Kg) Transformer Oil Capacity max. (Kg) Connecting to the line
1.2 Kg. / DIN 42562 Form E MH.641E 1,2 4500 Flanş / Flange
2.4 Kg. / DIN 42562 Form E MH.651E 2,4 9000 Flanş / Flange
3.6 Kg. / DIN 42562 Form E MH.661E 3,6 13500 Flanş / Flange
4.8 Kg. / DIN 42562 Form E MH.671E 4,8 18000 Flanş / Flange
6.0 Kg. / DIN 42562 Form E MH.681E 6,0 22500 Flanş / Flange

Moisture holder Type L Form E (DIN 42562 / EN 50216-5)

  • It is offered for use with corrosion resistant electrostatic paint.
  • It consists of light material aluminum body.
  • Fasteners wing nuts are stainless.
  • Cylinder and chamber: Consists of glass or acrylic glass.
  • Our products are offered for sale without silica gel.
  • Top connection flange is produced from st37.
