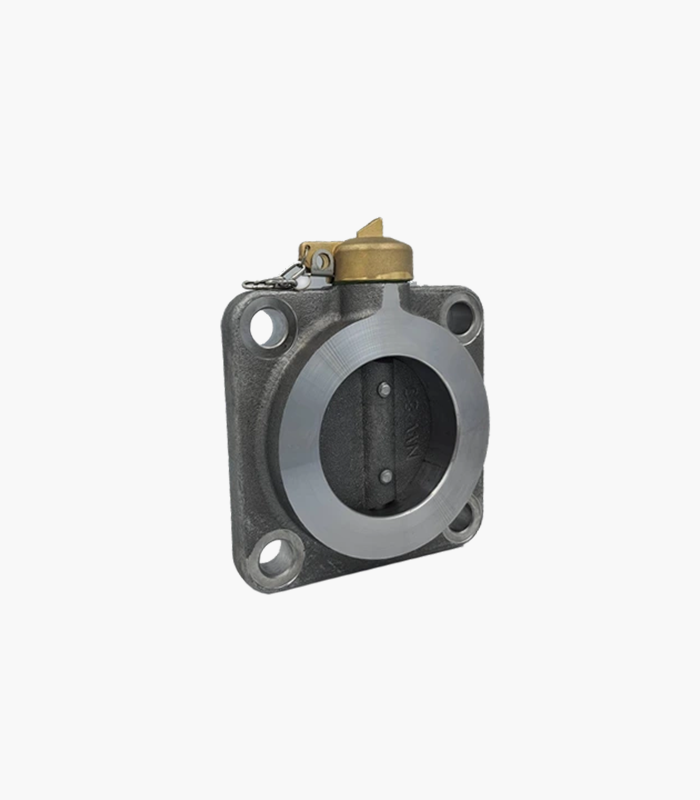

Transformer Radiator Valves DIN 42560 Form B and Form B OR

For transformers, DIN 42560 Form B and Form B OR butterfly valves are designed as flanged, they are mounted to the transformer tank with flange through the connection holes. The butterfly flap is cast and the body is steel, metal-to-metal sealing is provided. Maintenance free.
Optionally, we also have Form A production that provides full sealing.

Our transformer radiator valves meet the operating conditions of DIN 42560 Form B NW80, DIN 42560 and EN 50216-8 norms.

Transformer Radiator Valves DIN 42560 Form B and Form B OR options;

• O-ring channel dimensions on the flange surface are made according to the customer’s request.
• You can choose one of two options for flange connection holes. 4×18mm or 4xM16 (PCD = 160mm)
• Stainless steel body
• Special designs resistant to -60 ° C
• 4 different on/off heads
